Xv6 Page Table

Learning xv6-riscv-book Chapter 3 Page tables

[TOC]

Isolate different process’s address spaces and to multiplex them onto a single physical memory.

Paging hardware

Sv39 RISC-V:

  • Xv6 runs on Sv39 RISC-V: only the bottom 39 bits of a 64-bit virtual address are used; the top 25 bits are not used.

  • a RISC-V page table: an array of $2^{27}$ page table entries (PTEs)

  • a PTE: a 44-bit physical page number (PPN) and flags.

[Logically] The paging hardware: virtual address => physical address:

  • handle a 39-bit virtual address
    • top 27 bits of the 39 bits: index into the page table to find a PTE
    • bottom 12 bits: do not change
  • making a 56-bit physical address:
    • top 44 bits come from the PPN in the PTE
    • bottom 12 bits are copied from the original virtual address.

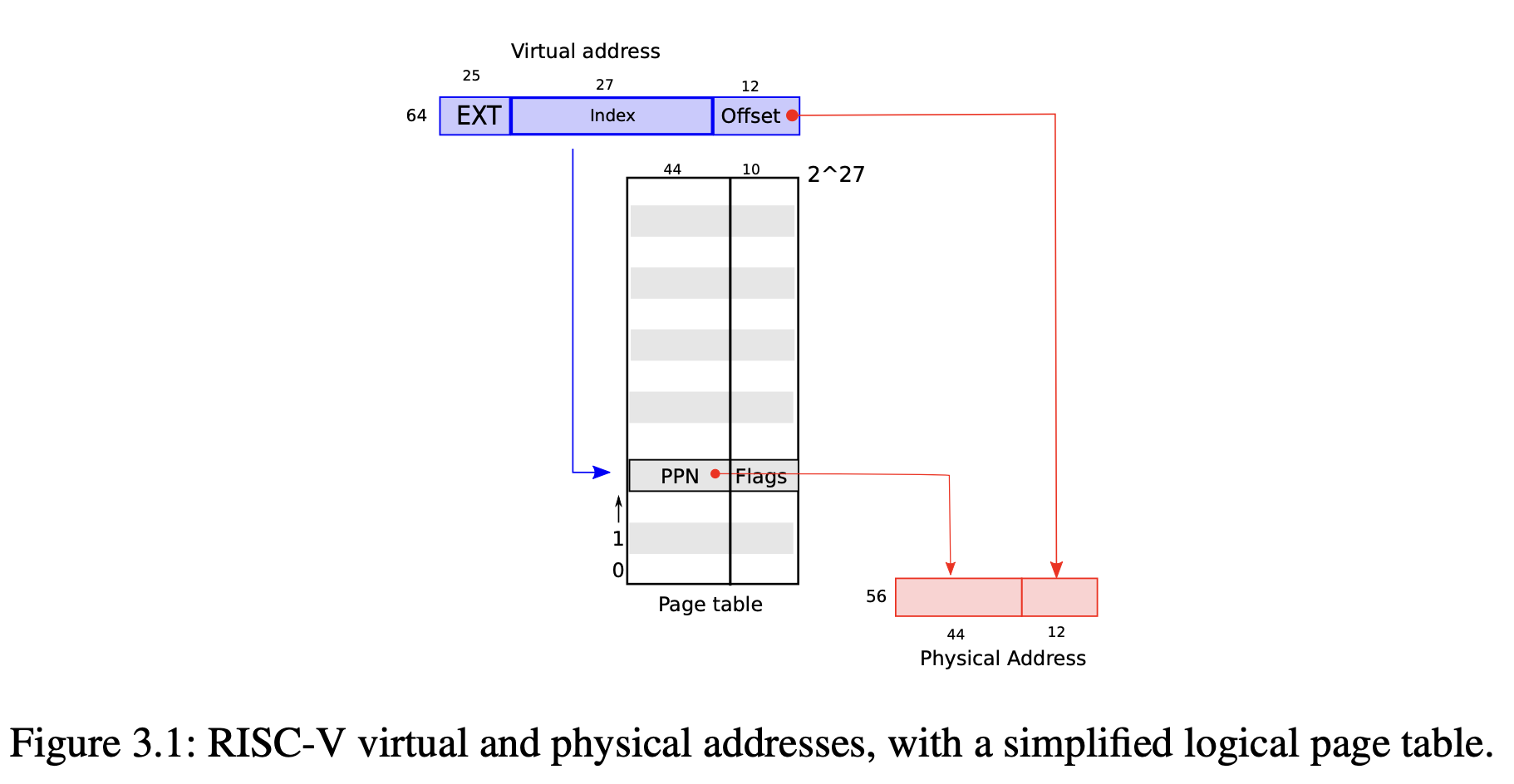

Figure 3.1: RISC-V virtual and physical addresses, with a simplified logical page table.

Virtual-to-physical address translations: aligned chunks of $2^{12}$ bytes. (Such a chunk is called a page.)

[Actually] Virtual -> Physical address translation:

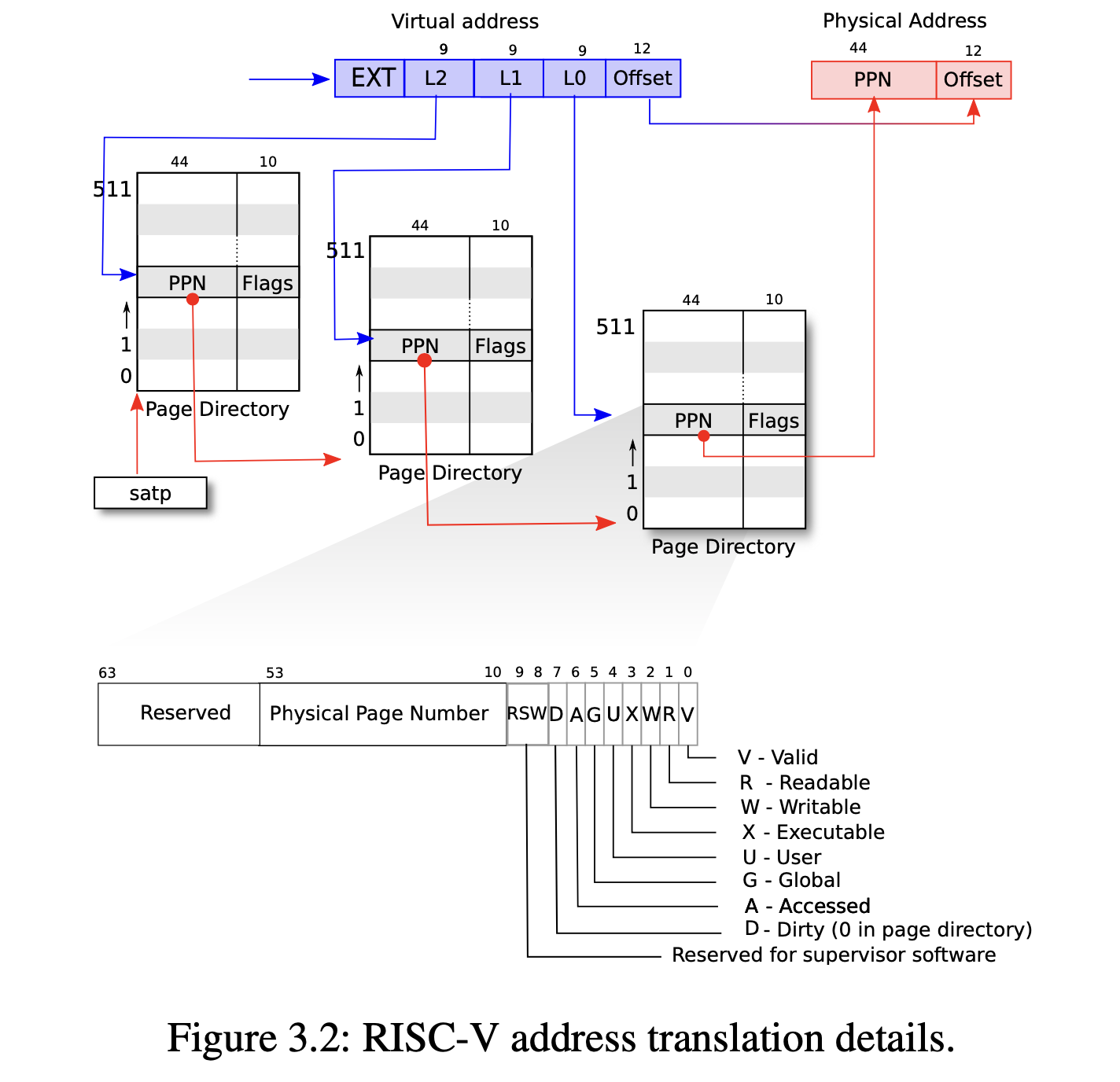

Figure 3.2: RISC-V address translation details.

  • page table: three-level tree: pages of PTEs
  • each PTEs page: 4096-bits: contains 512 PTEs to the next level
  • the top 27 bits virtual address to find PTE:
    • 9 bits => tree root
    • 9 bits => mid level
    • 9 bits => final PTE

In translation: any of the three required PTEs is not present:

  • paging hardware raises a page-fault exception
  • kernel handles the exception

Flag bits of PTE: how the associated virtual address is allowed to be used:

  • PTE_V: is the PTE present?
  • PTE_R: allowed to read (to the page)?
  • PTE_W: allowed to write?
  • PTE_X: interpret the content of the page as instructions and execute
  • PTE_U: allowed user mode instructions to access the page

(defined in kernel/riscv.h:329-333)

Tell the hardware to use a page table:

  • Kernel: write the physical address of the root page-table page into the satp register
  • CPU: translate all addresses generated by subsequent instructions using the page table on its satp
  • Each CPU has its own satp: different CPUs can run processes with a private address space described by its own page table.

Notes about terms:

  • Physical memory refers to storage cells in DRAM
  • A byte of physical memory has an address, called a physical address
  • Instructions use only virtual addresses
  • The paging hardware translates virtual addresses to physical addresses, and then sends them to the DRAM hardware to read or write storage
  • virtual memory ≠ virtual addresses
    • virtual memory: the collection of abstractions and mechanisms the kernel provides to manage physical memory and virtual addresses.
    • virtual addresses & physical addresses: a physical object

Kernel address space

  • User address space: Xv6 maintains one page table per process.
  • Kernel address space: an additional single page table to give the kernel itself access to :
    • physical memory
    • hardware resources at predictable virtual addresses

kernel address space layout: kernel/memlayout.h

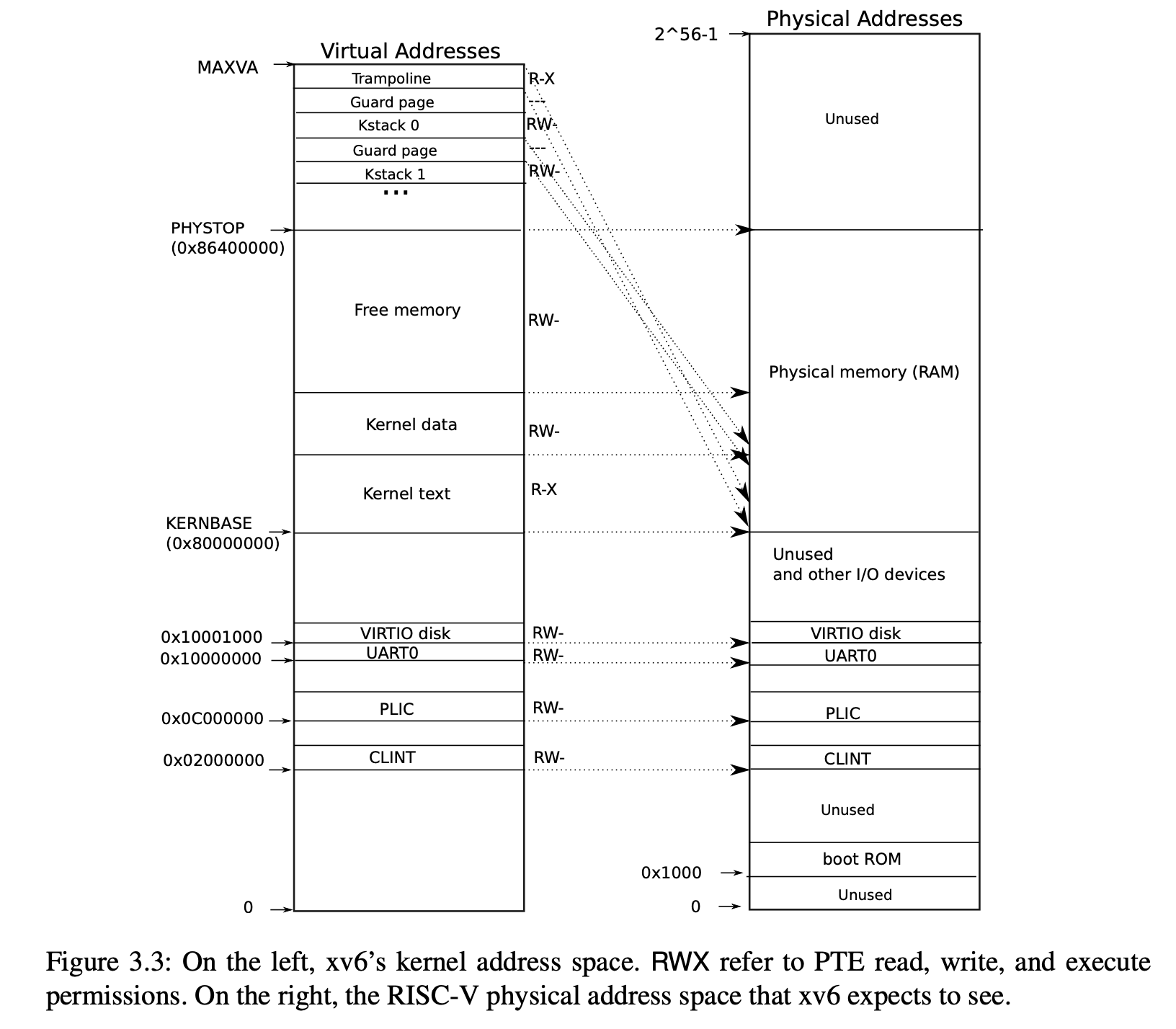

xv6’s kernel address space

QEMU physical address space:

  • below 0x80000000: device interfaces to software as memory-mapped control registers:
    • kernel interacts with the devices by reading/writing these special physical addresses.
  • 0x80000000 ~ PHYSTOP: RAM (physical memory) PHYSTOP = at least 0x86400000:
    • kernel gets at RAM and memory-mapped device registers using “direct mapping” (VA=X -> PA=X)
    • the kernel itself is located at KERNBASE=0x80000000 in both the virtual address space and in physical memory
  • special kernel virtual addresses aren’t direct-mapped:
    1. The trampoline page: mapped at the top of the virtual address space (the same as user page tables)
    • NOTE: the page holding trampoline is mapped twice in the kernel virtual address space: once at top of the virtual address space and once with a direct mapping
    1. The kernel stack pages: Each process has its own kernel stack mapped below an unmapped guard page (whose PTE is invalid: PTE_V is not set).
    • guard page: if the kernel overflows a kernel stack into guard page => a kernel panic
    • without guard page: overflowing stack overwrite other kernel memory => any incorrect operation

Creating an address space

vm.c

Central data structure:

  • pagetable_t: a pointer to a RISC-V root page-table page

Functions:

  • kvmXXX: manipulate the kernel page table
  • uvmXXX: manipulate a user page table
  • others: usedfor both

Key functions:

  • walk: finds the PTE for a virtual addres
  • mappages: installs PTEs for new mappings
  • copyin: copy from user to kernel (system call arguments)
  • copyout: copy from kernel to user

Boot:

  • main -> kvminit: create the kernel’s page table
  • (kvminit -> kvmmap -> mappages -> walk)
  • main -> kvminithart: install the kernel page table
  • main -> procinit (in kernel/proc.c): allocates a kernel stack for each pro- cess

Each RISC-V CPU caches page table entries in a Translation Look-aside Buffer (TLB):

  • xv6 changes a page table => must tell the CPU to invalidate corresponding cached TLB entries.
    • sfence.vma instruction: flushes the current CPU’s TLB
    • in kvminithart after reloading the satp register
    • in the trampoline code that switches to a user page table before returning to user space (kernel/trampoline.S:79)

Physical memory allocation

The kernel must allocate and free physical memory at run-time for page tables, user memory, kernel stacks, and pipe buffers.

  • uses the physical memory between the end of the kernel and PHYSTOP for run-time allocation
  • allocates and frees whole 4096-byte pages at a time
  • keeps track of which pages are free by a linked list：
    • allocation: removing a page from the linked list
    • freeing: adding the freed page to the list

Physical memory allocator

allocator: kalloc.c

  • data structure: free list
    • element: struct run
    • protected: spin lock

main calls kinit to initialize the allocator:

  • initializes the lock
  • initializes the free list to hold every page in [end of the kernel, PHYSTOP]

Process address space

  • Each process has a separate page table
  • switch processes => change page table
  • process ask for more memory:
    • xv6 uses kalloc to allocate physical pages
    • adds PTEs to the process’s page table

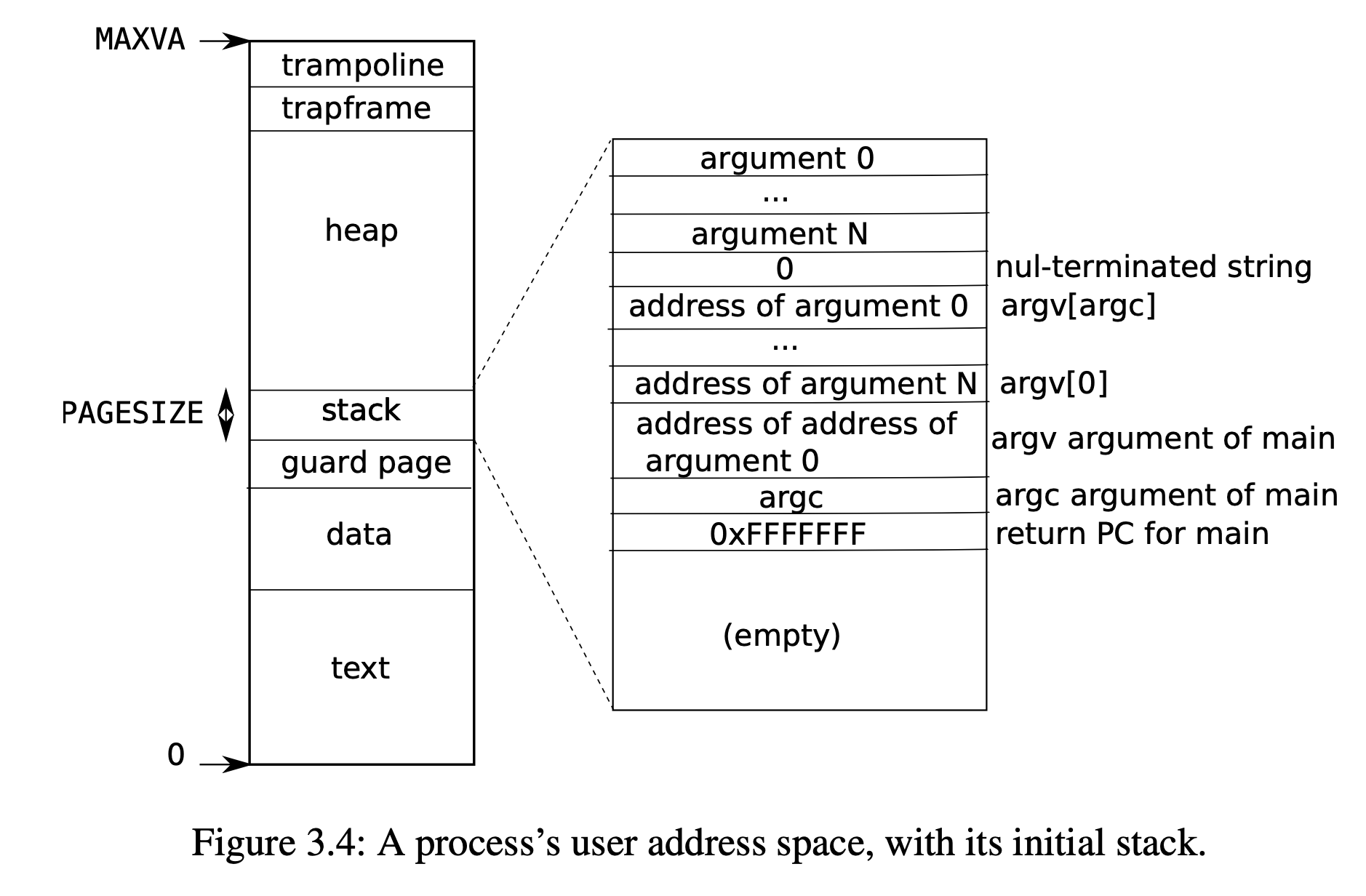

A process’s user address space, with its initial stack.

sbrk

sbrk: the system call for a process to shrink or grow its memory.

implement:

sbrk => kernel/proc: growproc => uvmalloc / uvmdealloc => kalloc / kfree

exec

exec: creates the user part of an address space.

  1. opens the named binary path using namei
  2. checks the ELF header
  3. allocates a new page table with no user mappings with proc_pagetable
  4. load program into memory:
    1. allocates memory for each ELF segment with uvmalloc
    2. loads each segment into memory with loadseg
  5. allocates and initializes the user stack
  6. copies the argument strings to the top of the stack, recording the pointers to them in ustack
